Patterned Electrodes

TYPICAL SPECIFICATIONS

• GFET-S10 (Die size 10 mm x 10 mm)
• Processed in Clean Room Class 1000
• Growth method: CVD synthesis
• Polymer assisted transfer
• Chip dimensions: 10 mm x 10 mm
• Chip thickness: 675 μm
• Number of GFETs per chip: 36
• Gate oxide thickness: 90 nm
• Gate oxide material: SiO2
• Dielectric Constant of the SiO2 layer: 3.9
• Resistivity of substrate: 1-10 Ω.cm

This design features 10 electrode probes to allow for multiple sensing onto one platform. Applications include protein analysis, DNA sequencing, and other cell-based research. Biological samples are also able to be tested. The square pads have dimensions of 100 µm x 100 µm. The spacing between squares is 130 µm. Chip dimensions: 1 cm x 1 cm

Pack Size: 6 chips

This electrode serves as a field effect transistor that can be used for a variety of applications. Liquid based solutions can be analyzed where a sample solution serves as a gate. Chip dimensions: 1 cm x 1 cm

Pack size: 6 chips

for a variety of applications. Liquid based solutions can be analyzed where a sample solution serves as a gate. Main fingers have dimensions of 20-µm x 100-µm and spacing of 20-µm. Chip dimensions: 1 cm x 1 cm

Pack size: 6 chips

This interdigitated electrode features reference and auxiliary electrodes that can be used in sensing applications. In this design, electrode finger widths are 50 µm with a spacing of 50 µm between fingers. Chip dimensions: 1 cm x 2 cm

Pack size: 6 chips

Five (5) probe micro-electrode for measuring sheet resistance (e.g. via kelvin method), impedance or conductivity of biological tissues, 2D materials, nanomaterials, polymers, advanced materials. Gap distance: 400-µm; Finger width: 100-µm; Chip dimensions: 20 mm x 10 mm x 0.7 mm

Pack size: 8 chips

NanoComposix Gold Conjugation Kit offers the advantage of covalent binding in two different gold sizes – 40 nm and 80 nm – to quickly screen and optimize gold conjugates for robust, high-performing lateral flow assays. This kit eliminates the need to pre-screen and validate critical reagents and supplies to ensure your best chance of success. Kit components include:

• BioReady carboxyl 40 nm or 80 nm gold particles, 20 OD
• Desalting column for removal of interfering reagents (NaCl, azide, tris, glycine)
• EDC and Sulfo-NHS
• All buffers necessary to complete the conjugation
• Step-by-step conjugation procedure and optimization
• New: Complementary 2 hours of technical and assay development support

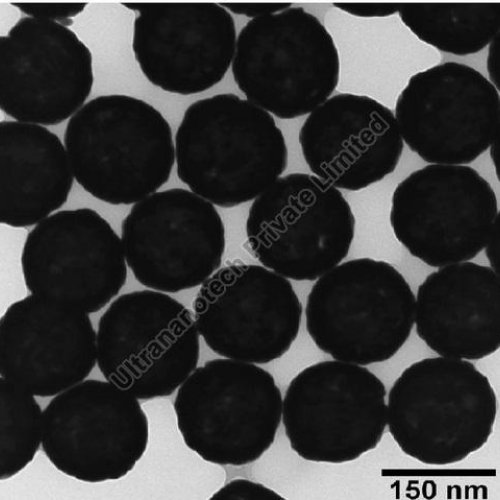

Gold nanoshells provide an ultrabright label for lateral flow – up to 20× increases in lateral flow diagnostic sensitivity over 40 nm gold.

Carboxyl is covalently bound to the metal surface. The acid provides a highly negatively charged surface for subsequent conjugation to proteins, antibodies or peptides

BioReady products are specially formulated for the attachment of a molecular recognition element such as an antibody for lateral flow and biodiagnostics.

Provided at 20 OD in a .02 mM potassium carbonate solution.

Diameter
150 nm

Concentration
20 OD in aqueous .02 mM potassium carbonate
